Structure formed by Polycarbonate, "transparent steel", whose impact-resistance is stronger than acrylic or glass. Resistant to damage by earthquake or impact from hard objects. Resistant to temperatures from -40 ℃ to 125 ℃ and is also fire resistant.
NuVa pneumatic vacuum elevators
NuVa pneumatic vacuum elevators

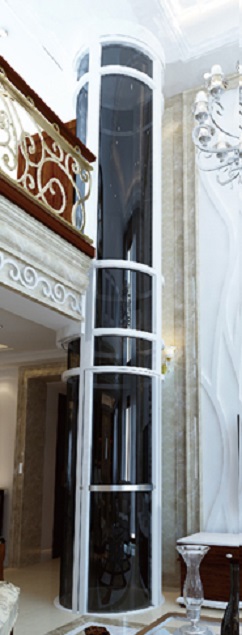

The most compact elevator in the world. Breaking the restrictions of traditional elevators, Nuva is lightweight and does not affect the floor plan of your home. Nuva is easy to install and is even portable. It is the best solution for all modern homes.
This product is sold by GFC Ltd.,'s 100% subsidiary Howtobe Technology Co., Ltd.. Please visit Nuva, pneumatic vacuum elevator's, official website (PC version/Language:Traditional Chinese): http://www.howtobe.com.tw/
| Specification | Two passenger | Three passenger | ||||||
| Entrance direction | One-way Two-way |
One-way Two-way |
||||||
| Wheelchair-accessible | No | Yes | ||||||
| Rated capacity | 180kg | 240kg | ||||||
| External cylinder diameter | 990mm | 1390mm | ||||||
| Cabin height | 1950mm | 2000mm | ||||||
| Traveling speed | 20m/M | 10m/M | ||||||
| Max total rise | Up to 15m | |||||||
| Max stops | Up to 5 stops | |||||||
| Standard frame colors |
|
|||||||
| Installation | 220VAC-60 Hz single phase power supply Installation time approximately two days No pit, hoist way, or machine room required |
|||||||
| Function | Door safety system Mechanical emergency brakes prevent freefall in case of a loss of vacuum or other catastrophic failure. Automatic descent to ground level in the event of a power failure. Alarm bell and telephone Automatic LED lighting and cabin fan |
|||||||
Eco-friendly technology
The vacuum elevator combines a smooth, vertical cylinder with a coaxial car that moves up and down by air suction. The movement of the elevator is caused by the ascending push generated by the difference between the low pressure above the top of the car and the atmospheric pressure under the car. The principle is similar to drinking beverages through a straw. Sucking the air out of the straw = Nuva goes up; Mouth opening = Nuva goes down
Multinational safety certifications

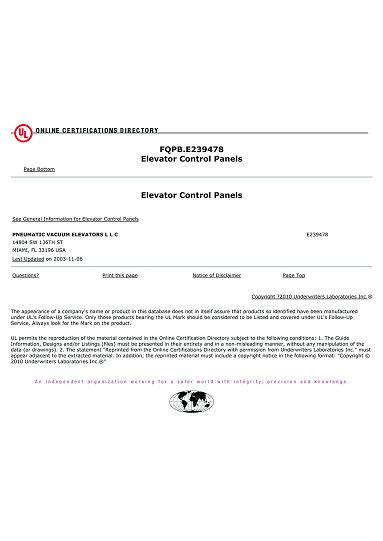

Nuva is not only protected by patents from the Europe and United States, but also has been certified to be electrically safe by the U.S. It has also passed seismatic and elevator standard to ensure absolute safety.
Fast installation
Because Nuva does not use cables or counterweights, it is the most compact elevator in the world, with a diameter of less than 100 cm. It will not affect the floor plans of your home.
Nuva does not require a pre-constructed shaft, pit, nor machine room and can be installed in approximately 48 hours.
Transporting and Lifting
Positioning
Assembly
complete
Safety and security

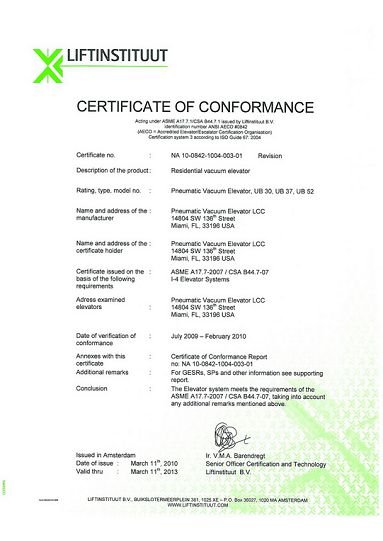

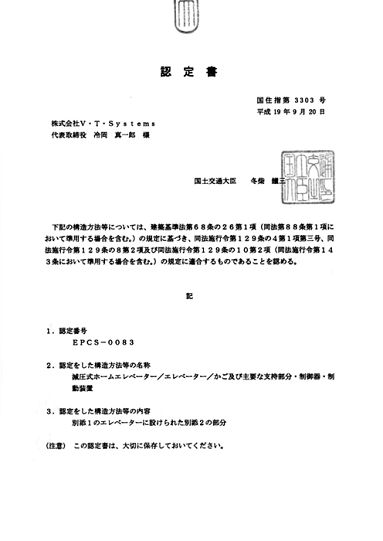

World class certifications
Nuva is not only protected by patents from the Europe and United States, but also has been certified to be electrically safe by the U.S. It has also passed seismatic and elevator standard to ensure absolute safety.
Safety device
The door of Nuva opens manually. A sophisticated detection switch and safety lock ensures the door cannot accidentally be opened during operation.
During a power failure
In the event of a power failure, the car automatically descends at approximately one-thirds the rated speed to the lowest level and the mechanical lock will open to let the passenger safely exit. During the power outage, a rechargeable battery will power the lighting and fan in the cabin.
During an earthquake
During an earthquake please do not use the elevator. After the earthquake, it is necessary to test the elevator operation to ensure there are no abnormalities before resuming usage. Please contact the maintenance company after strong earthquakes. Our maintenance staff will perform a thorough safety check.
Regular maintenance
To ensure the safe use of Nuva, we recommend you to have the elevator maintained regularly and to follow advice about replacing consumables. We can provide you with monthly maintenance. Our staff are on-call 24 hours a day.。
Contact information for NuVa
Howtobe Technology Co., Ltd.
Add.：No. 164, Sec. 2, Longan St., Luzhu Dist., Taoyuan City 33844, Taiwan
Tel.： +886-3-370-5537
+886-800-007-258
Taichung showroom
Add.： No. 540, Sec. 1, Wenxin Rd., Taichung City, Taiwan
Tel.：+886-800-007-258
This product is sold by GFC Ltd.,'s 100% subsidiary - Howtobe Technology Co., Ltd.. For more information, please refer to Nuva's official website (PC version/Language:Traditional Chinese)
Integrated, solid structure

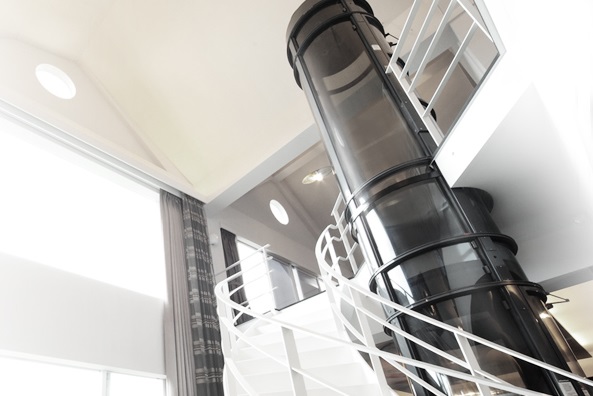

Transparent design
The transparent, round shape, which is designed according to modern aesthetics, can be an elegant addition to your home. For the frame, choose from three standard colors.
High intelligent and safe
During operation, all doors are locked to ensure the safety of passengers. A sophisticated detection switch and safety lock ensures security during operation. In the event of a power outage, Nuva will automatically descend to the ground level and the door will unlock to let the passengers out.
Ultimate space-saving solution
This innovative home elevator does not require cables, an pre-constructed elevator shaft, pit, nor machine room and can be installed in as little as 48 hours. It is even portable when moving to another house. It is the best solution for duplex apartments or townhouses.
A part of your home
Nuva is like an elegant piece of furniture. It does not require you to change the layout of your home. It is very convenient for the elderly.
Multinational patents
Nuva was invented by Pneumatic Vacuum Elevators in the United States. The pneumatic vacuum elevator's technology is patented in Europe, Japan and the United States. With recent improvements to this technology, Nuva is now the best solution for Asian residences, particularly town houses and duplex apartments.
Integrated, solid structure
Structure formed by Polycarbonate, "transparent steel", whose impact-resistance is stronger than acrylic or glass. Resistant to damage by earthquake or impact from hard objects. Resistant to temperatures from -40 ℃ to 125 ℃ and is also fire resistant.
Transparent design
The transparent, round shape, which is designed according to modern aesthetics, can be an elegant addition to your home. For the frame, choose from three standard colors.
High intelligent and safe
During operation, all doors are locked to ensure the safety of passengers. A sophisticated detection switch and safety lock ensures security during operation. In the event of a power outage, Nuva will automatically descend to the ground level and the door will unlock to let the passengers out.
Ultimate space-saving solution
This innovative home elevator does not require cables, an pre-constructed elevator shaft, pit, nor machine room and can be installed in as little as 48 hours. It is even portable when moving to another house. It is the best solution for duplex apartments or townhouses.
A part of your home
Nuva is like an elegant piece of furniture. It does not require you to change the layout of your home. It is very convenient for the elderly.
Multinational patents
Nuva was invented by Pneumatic Vacuum Elevators in the United States. The pneumatic vacuum elevator's technology is patented in Europe, Japan and the United States. With recent improvements to this technology, Nuva is now the best solution for Asian residences, particularly town houses and duplex apartments.
